Under the action of the fan, the material moves to the classification area at a high speed from the lower inlet of the classifier with the updraft. Under the action of the strong centrifugal force generated by the high-speed rotating classification turbine, the material is separated, and the fine particles meeting the particle size requirements enter the cyclone separator or dust collector through the blade gap of the classification wheel for collection. The velocity of some fine particles entrained by coarse particles disappears after hitting the wall, and then decreases to the secondary air outlet along the wall of the cylinder. Through the strong washing effect of the secondary air, the coarse and fine particles are separated, the fine particles rise to the secondary classification in the classification area, and the coarse particles drop to the discharge port for discharge.
Air Classifier
Realize the separation of particles of different sizes
According to the centrifugal force, gravity, inertial force, etc. of particles of different sizes in the medium (usually air), different trajectories are generated, so as to realize the separation of particles of different sizes.
- A variety of classification rotor are available, and the output can be adjusted; speed of wheel is controlled by inverter, particle size can be adjusted freely. The classifying wheel can be made of ceramic materials, without metal pollution, meeting the requirements of high-purity materials.
- Grinding is in closed system, little dust, low noise in a clean and environmentally friendly process.
- In conjunction with ball mill, table roller mill and Raymond mill to form closed circulation.
- Optional explosion-proof design, can also be upgraded to a nitrogen circulation system to meet the processing needs of flammable and explosive oxide materials.
Working Principle

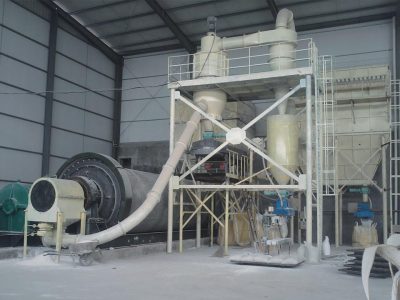

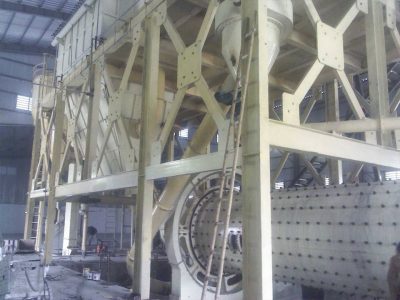

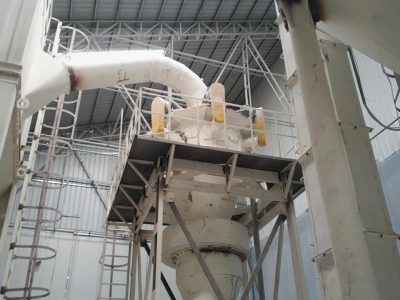

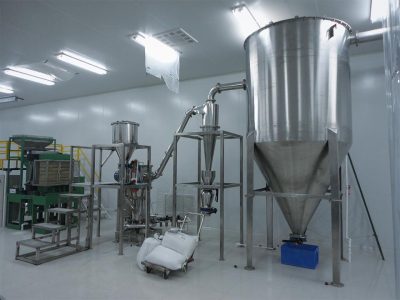

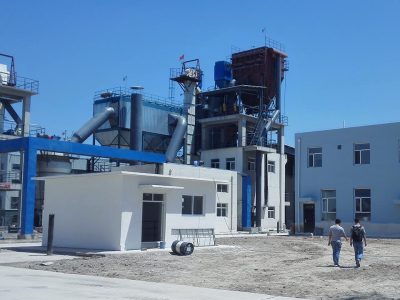

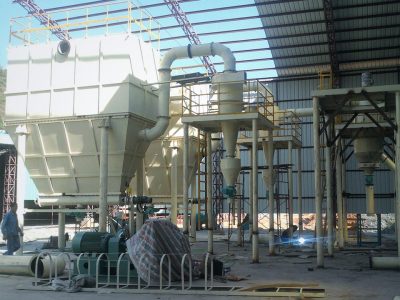

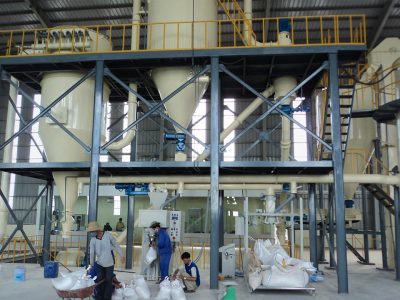

Related Projects
Technical Parameters
Technical parameters of horizontal single rotor air classifier
| Parameter / Model | FW120 | FW200 | FW280 | FW400 | FW520 | FW630 | FW800 | FW1000 |
|---|---|---|---|---|---|---|---|---|
| Processing capacity (kg/h) | 1~10 | 10~200 | 30~500 | 50~800 | 100~1500 | 200~2500 | 400~3000 | 800~5000 |
| Particle size D97:μm | 2.5~45 | 2.5~45 | 2.5~45 | 2.5~45 | 2.5~45 | 2.5~45 | 4~45 | 5~45 |
| Maximum speed of metal classifying wheel (rpm) | 18000 | 15000 | 8000 | 6000 | 4450 | 3550 | ||
| Maximum speed of ceramic classifying wheel (rpm) | 18000 | 15000 | 6000 | 4450 | 3550 | |||
| Classification efficiency η% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% |
| Classification motor power (kW) | 2.2 | 3 | 4 | Belt connection 7.5/ Direct motor connection 7.5 | Belt connection 11/ Direct motor connection 7.5 | Ceramic: Belt connection 15; Metal: Belt connection 22/ Direct motor connection 15 | 22/30 | 30/37 |
| Air volume (m³/h) | 300 | 600~800 | 1000 | 1400 | 2200~2800 | 3000~3500 | 5500~6000 | 8500~9500 |
Technical parameters of horizontal multi-rotor air classifier
| Parameter / Model | FW400/3 | FW400/4 | FW400/6 | FW630/3 | FW630/4 | FW630/6 | FW800/3 | FW800/4 | FW800/6 | FW1000/3 | FW1000/4 | FW1000/5 | FW1000/6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Processing capacity (kg/h） | 200~1500 | 300~2000 | 1000~6000 | 1000~6000 | 2000~8000 | 3000~12000 | 2000~7500 | 3000~10000 | 5000~15000 | 5000~12000 | 8000~16000 | 15000~20000 | 20000~24000 |
| Particle size D97:μm | 2.5~45 | 2.5~45 | 2.5~45 | 2.5~45 | 2.5~45 | 2.5~45 | 3~45 | 3~45 | 3~45 | 4~45 | 4~45 | 4~45 | 4~45 |
| Classification efficiency η% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% | 60~80% |
| Classification motor power (kW) | 7.5/11*3 | 7.5/11*4 | 7.5/11*6 | 15/22*3 | 15/22*4 | 15/22*6 | 22/30*3 | 22/30*4 | 22/30*6 | 30/37*3 | 30/37*4 | 30/37*5 | 30/37*6 |
| Air volume (m³/h） | 4200 | 5600 | 11000 | 11000 | 14500 | 22000 | 17000 | 22500 | 33500 | 26500 | 35000 | 43000 | 52000 |
Technical parameters of vertical single-rotor air classifier
| Parameter / Model | FL200 | FL300 | FL360 | FL450 | FL600 | FL800/ITC4 | FL900/ITC5 | FL1000/ITC6 | FL1200/ITC7 | FL1500/ITC8 | FL2000/ITC9 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Processing capacity (kg/h) | 100~300 | 200~1000 | 300~1500 | 1000~3000 | 2000~6000 | 5000~8000 | 6000~12000 | 8000~15000 | 12000~20000 | 15000~30000 | 20000~50000 |
| Particle size D97:μm | 5~150 | 6~150 | 6~150 | 8~150 | 8~150 | 10~150 | 15~150 | 15~150 | 20~150 | 25~150 | 25~150 |
| Maximum speed of classifying wheel (rpm） | 2900 | 2930 | 1470 | 1470 | 1480 | 820 | 490 | 370 | |||
| Classification efficiency η% | 60~90% | 60~90% | 60~90% | 60~90% | 60~90% | 60~90% | 60~90% | 60~90% | 60~90% | 60~90% | 60~90% |
| Classification motor power (kW) | 4 | 7.5 | 11 | 15 | 22 | 37 | 37 | 45~55 | 55~75 | 75~90 | 90~110 |
| Air volume (m³/h) | 400~500 | 2400~2800 | 3500~4000 | 4500~6300 | 8000~11000 | 14000~18000 | 18000~25000 | 26000~30000 | 32000~45000 | 50000~60000 | 80000~110000 |
Technical parameters of vertical single-rotor air classifier
| Parameter / Model | FL360/3 | FL360/4 | FL360/6 | FL450/3 | FL450/4 | FL450/6 |
|---|---|---|---|---|---|---|
| Processing capacity (kg/h） | 2000~6000 | 4000~8000 | 6000~15000 | 3000~9000 | 5000~12000 | 8000~24000 |
| Particle size D97:μm | 5~150 | 5~150 | 5~150 | 8~150 | 8~150 | 8~150 |
| Classification efficiency η% | 60~90% | 60~90% | 60~90% | 60~90% | 60~90% | 60~90% |
| Classification motor power (kW) | 33 | 44 | 66 | 45 | 60 | 90 |
| Air volume (m³/h) | 9000~10000 | 12000~15000 | 18000~24000 | 15000~18000 | 18000~24000 | 27000~32000 |
Note: The production capacity is closely related to the particle size, specific gravity, hardness, moisture and other indicators of the raw materials. The above parameters are for reference only, please consult our engineers for details.
